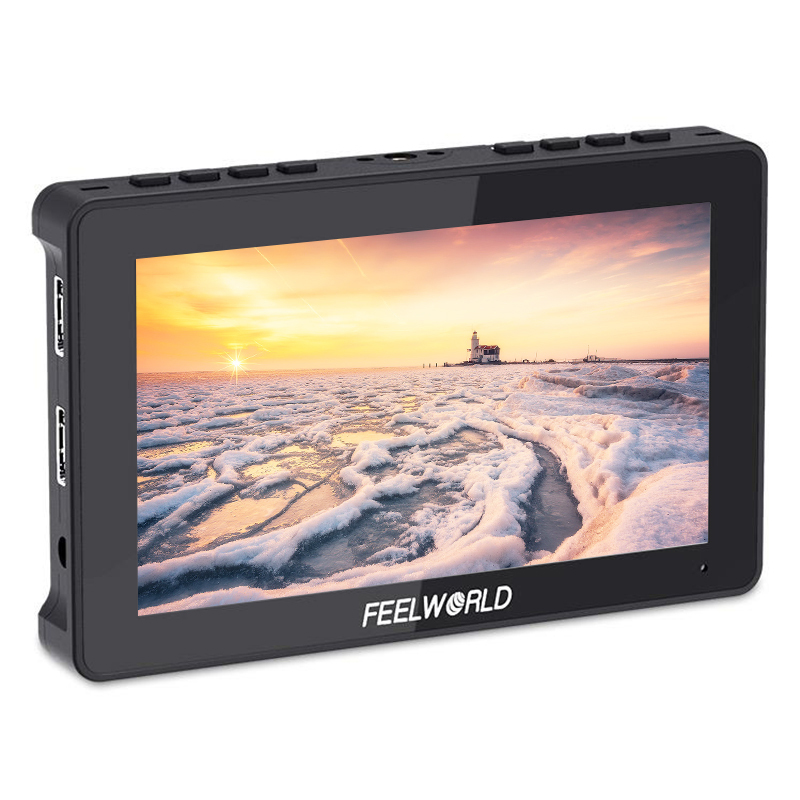

CAMVATE FeelWorld F5 Pro V2 5.5 Inch Touch Screen DSLR Camera Field Monitor 3D LUT 4K HDMI Input Output With Tilt Arm & Sunshade (Cage Included)

Name: CAMVATE FeelWorld F5 Pro V2 5.5 Inch Touch Screen DSLR Camera Field Monitor 3D LUT 4K HDMI Input Output With Tilt Arm & Sunshade (Cage I
Brand: CAMVATE
SKU: C2769
Price: 152.99 USD
Availability: InStock

SKU: C2769

Flash Sale

0.0 (0 Reviews)

~~$179.99~~ $152.99

-15%

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $0.50 OFF ON ORDERS OVER $9.99
GET $2.00 OFF ON ORDERS OVER $19.98
GET $3.00 OFF ON ORDERS OVER $39.00
GET $10.00 OFF ON ORDERS OVER $100.00
GET $25.00 OFF ON ORDERS OVER $200.00
GET $50.00 OFF ON ORDERS OVER $300.00
GET $100.00 OFF ON ORDERS OVER $500.00
View More
View Less

Add to Favorites (0)

1/1

Description

**Monitor Specification**
• Brand Model: FeelWorld F5 Pro V2	Condition: genuine & 100% brand new
• Display Size: 5.5" IPS touch screen	• Aspect Ratio: 16:9
• Dimension: 148L×93H×20D (mm)	• Net Weight: 245 g
• Screen Resolution: 1920×1080 pixels	• Luminance: 500 cd / ㎡
• Contrast Ratio: 1000:1	• Mounting: 1/4" female thread (top / bottom /right )

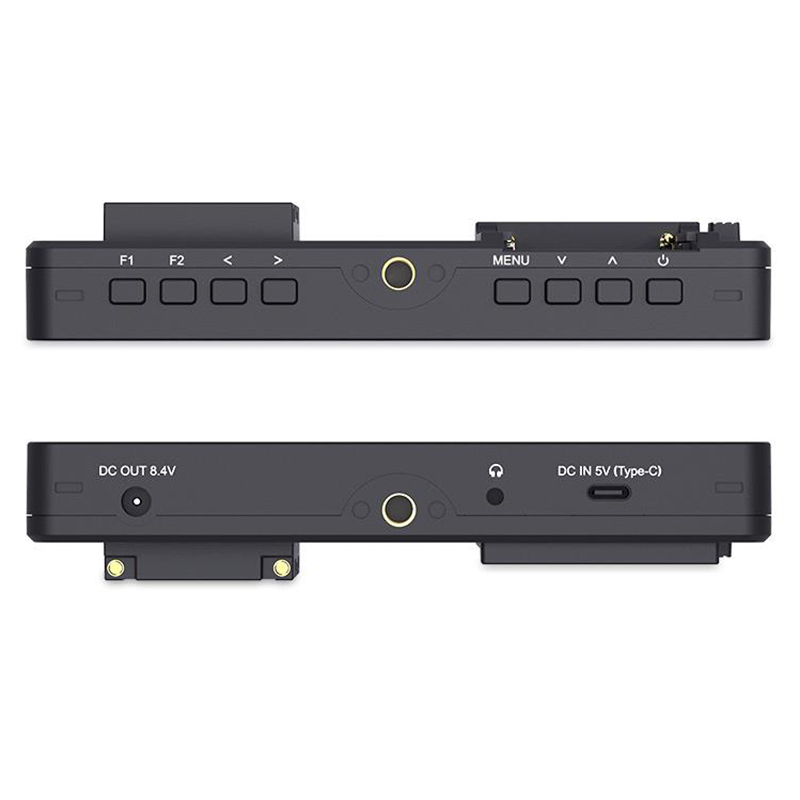

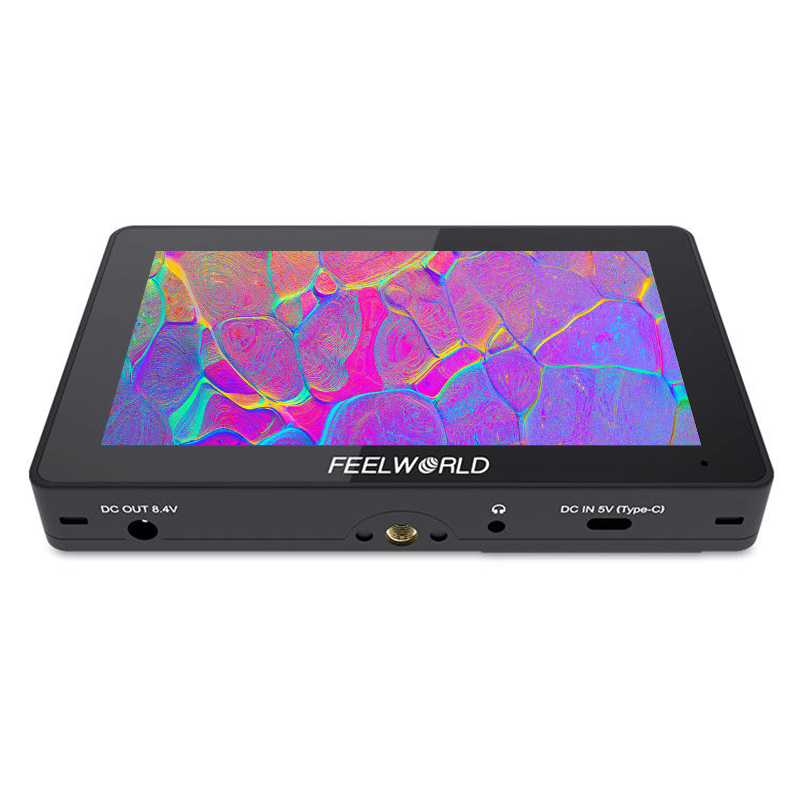

• Input: HDMI / 5V type C	• Output: HDMI / DC OUT 8.4V
• DC Input Power: 7 ~ 24 V DC	• Audio: 3.5mm stereo headphone
• Battery Plate: F970 Battery Plate	• Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.

Product Description

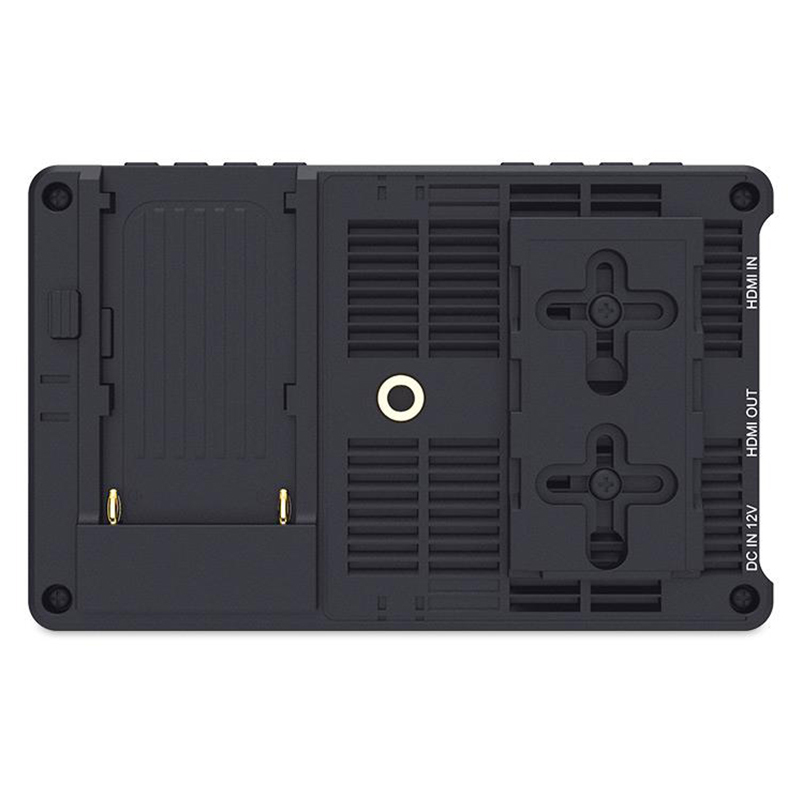

• When attached to your camera, the size and weight of your monitor matters. We shaved F5 Pro down to just 245g and added 1/4-20 screw mounts top, bottom and right for ease of cage, adaptor rigging, and tilt arm. There are an F970 battery plate and an install/ power kit on the back of the monitor, the install/ power kit can power and install the external equipment, like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. F5 Pro is compatible with most cameras and HDMI-ready devices and is the perfect companion for the shooters that are always on the go.
• The F5 Pro provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1080 high resolution and 16:9 display, 500cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image. The wide viewing angle of IPS 160 degrees is convenient for monitoring from multiple angles. FEELWORLD follows the standard of REC-709 and calibrates each monitor so that it can eliminate the trouble of color cast.

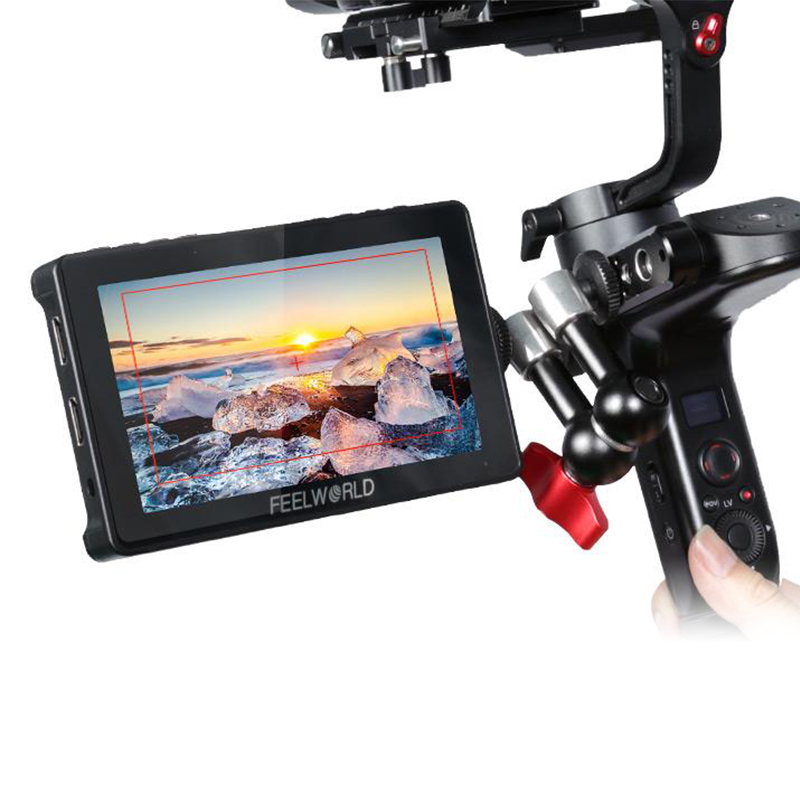

• The FEELWORLD F5 Pro V2 is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F5 Pro V2 provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the F5 Pro V2 extends camera run-time, while providing a more usable display.

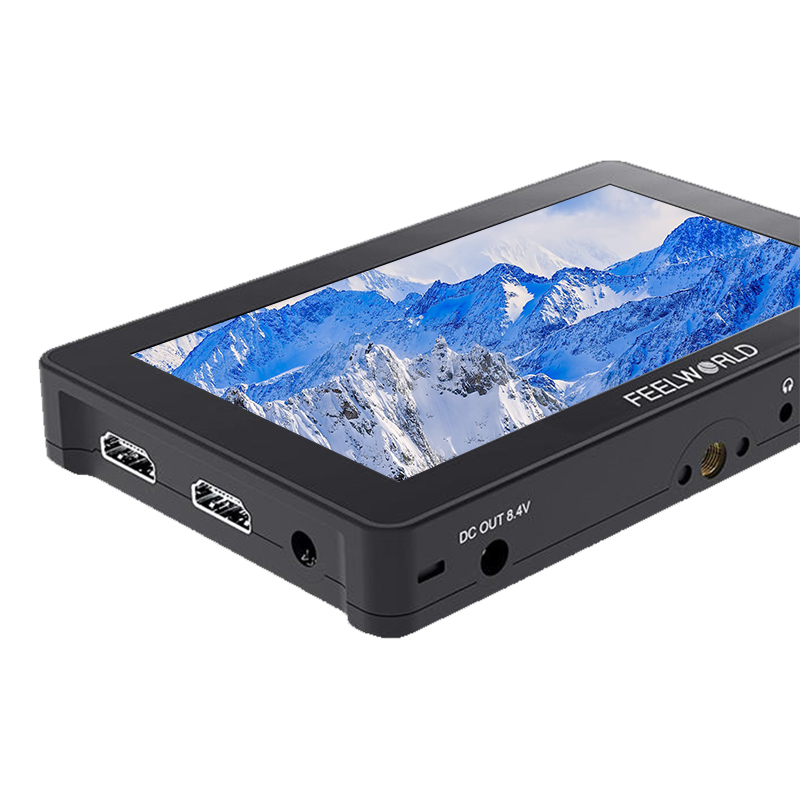

• The F5 Pro V2 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

Touch Screen Operation Instruciton：
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside menu to exit the menu.

Net Weight: 681.6 g

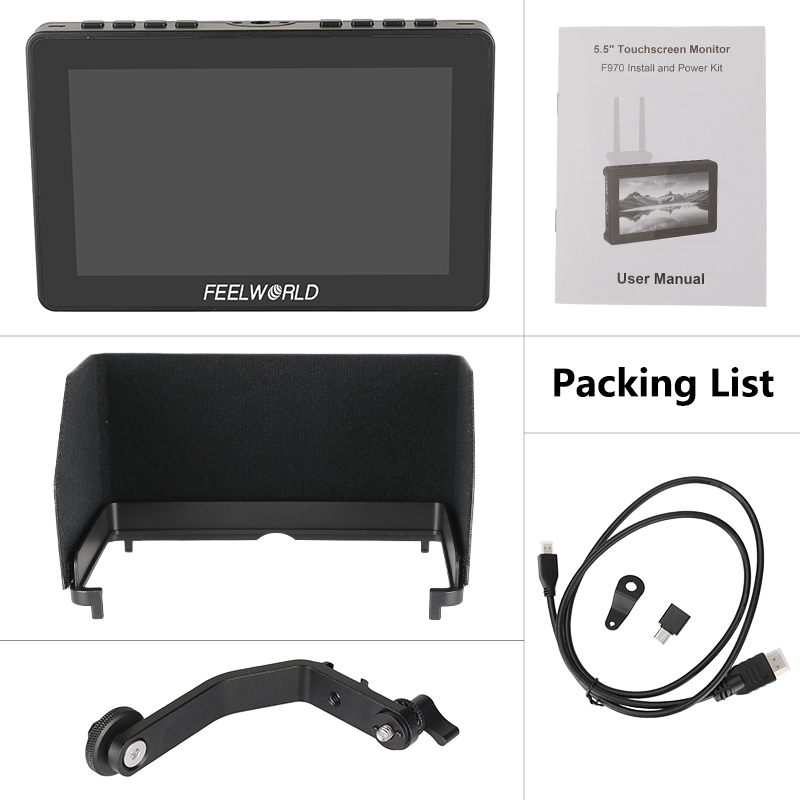

Package Included:
1 x FeelWorld F5 Pro V2 5.5" Touch Screen DSLR Camera Field Monitor

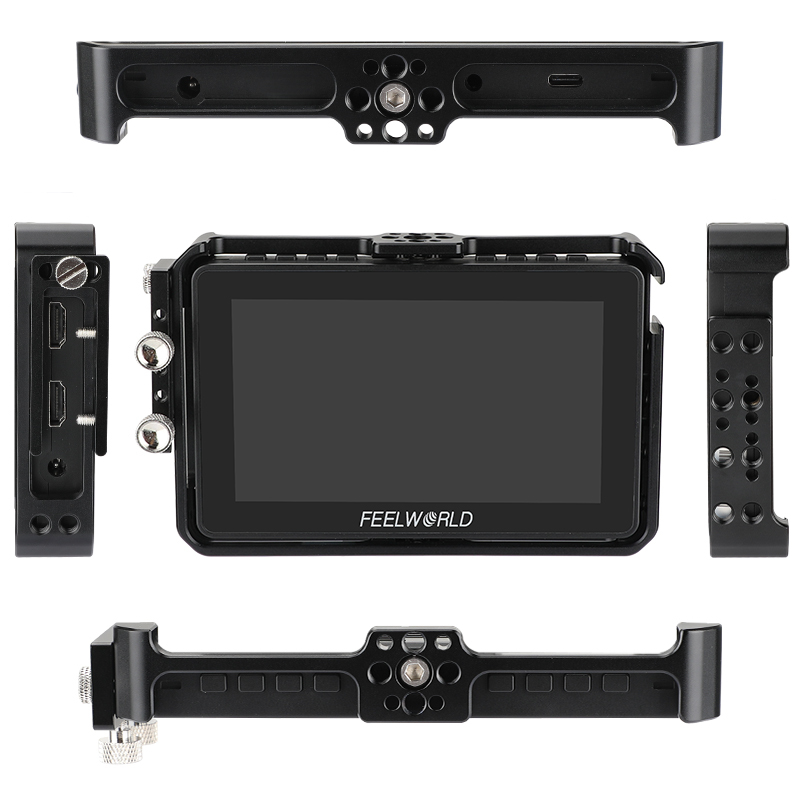

1 x Monitor Cage C2774
1 x Micro HDMI Cable

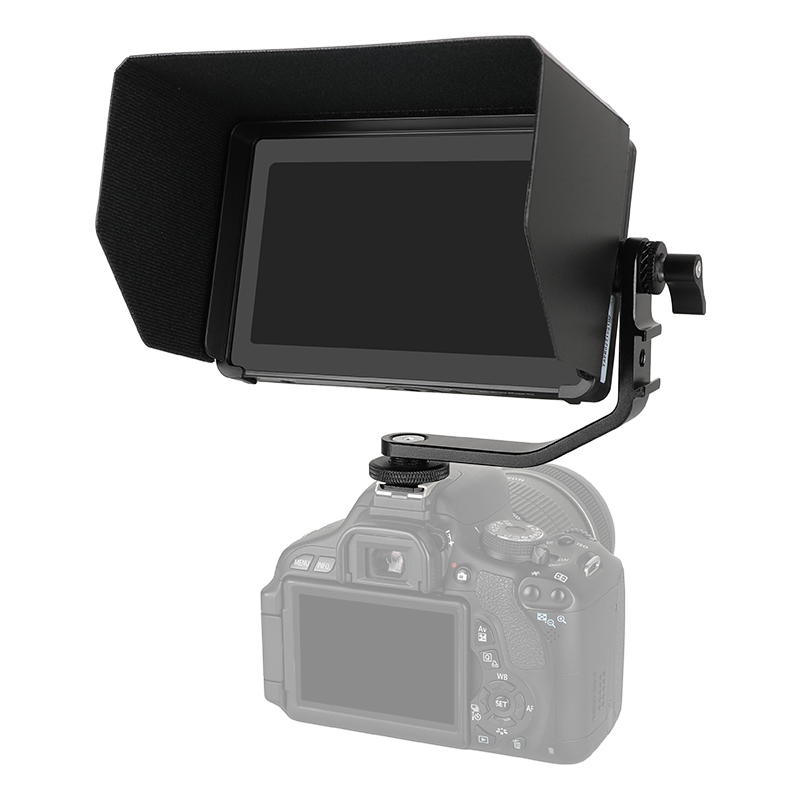

1 x Sunshade
1 x Tilt Arm
1 x Type C To USB
1 x Disassemble Wrench
1 x Operation Manual
