Product Highlights

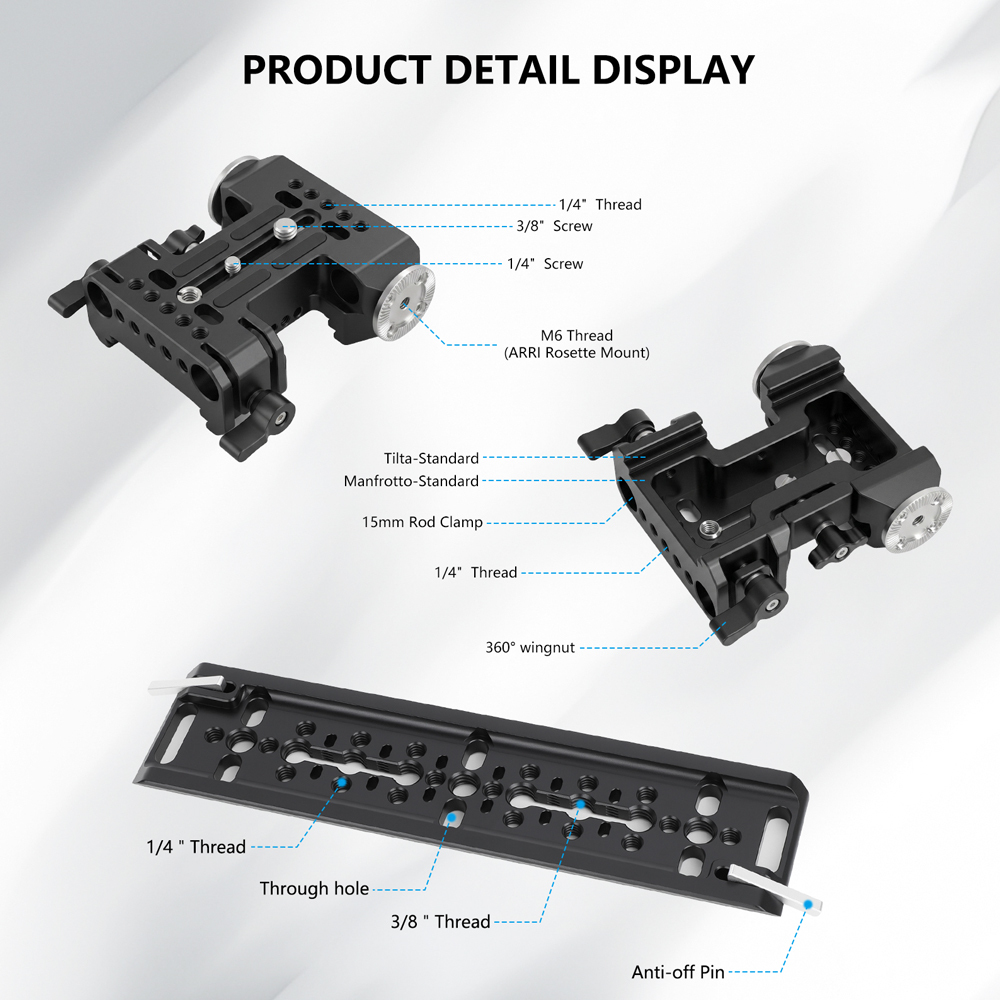

• 8"/20cm Manfrotto-Style Bottom Dovetail

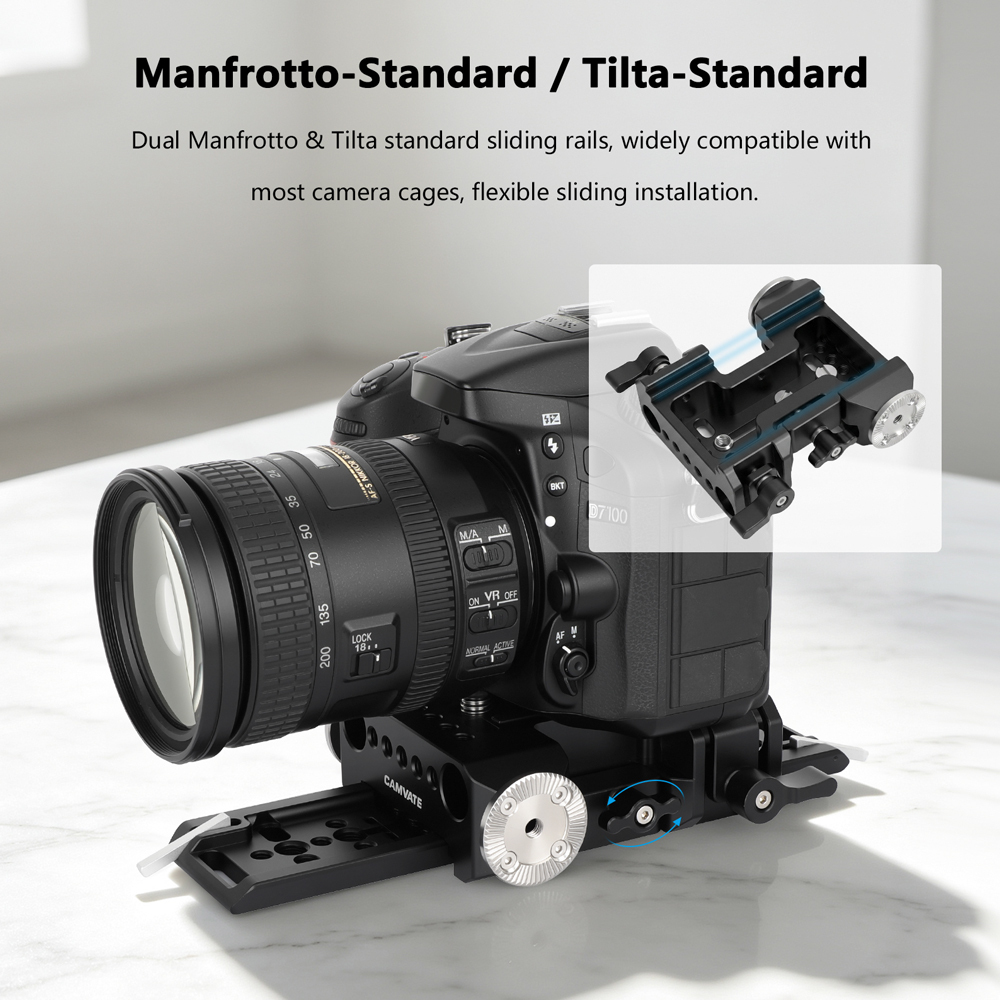

• Manfrotto/Tilta Compatible Dovetail Bridge Plate

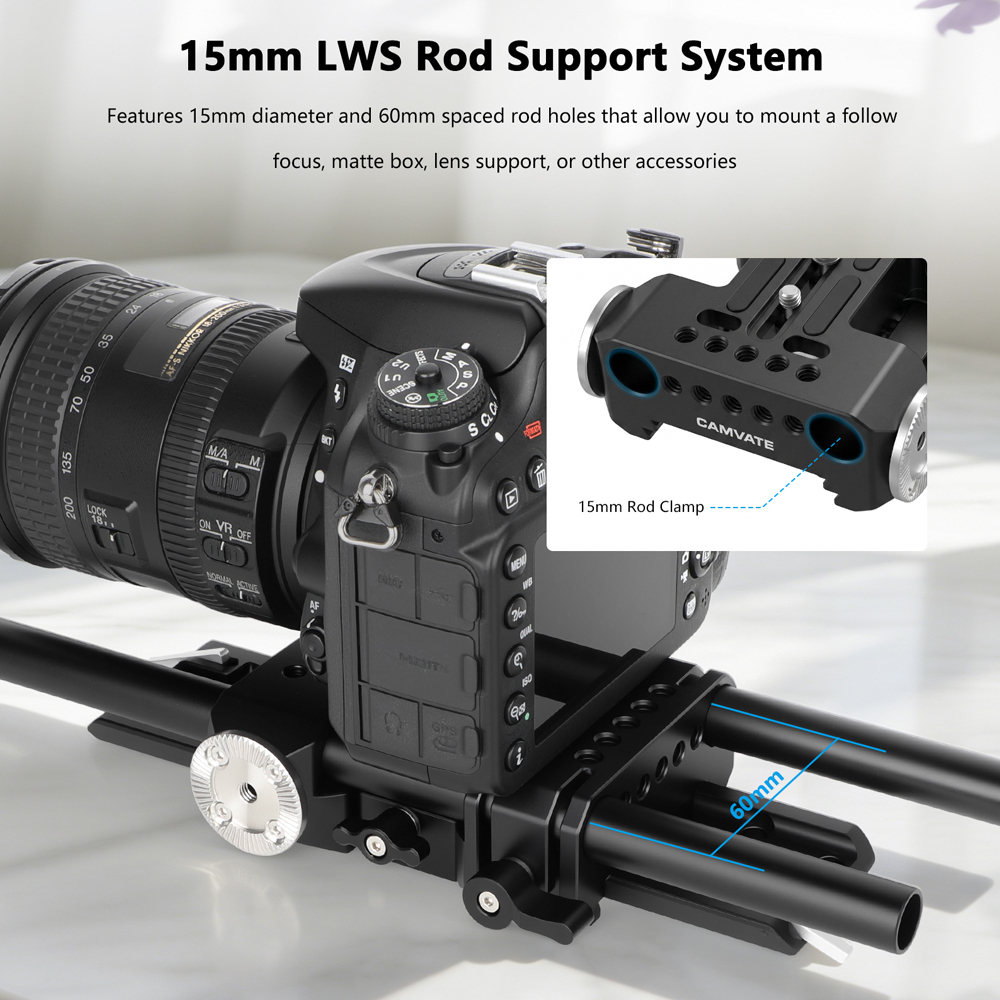

• 15mm LWS Rod Support, ARRI-Standard Rosettes

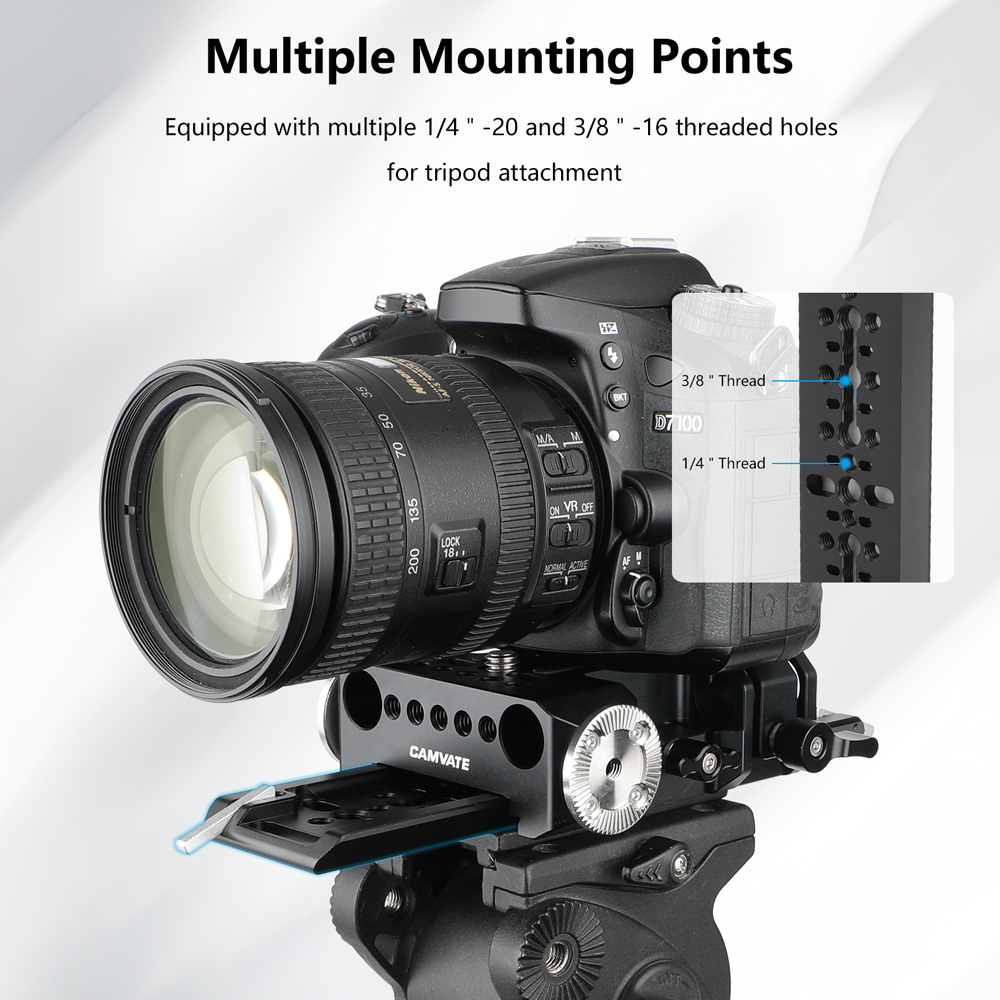

• 1/4"-20 and 3/8"-16 Camera Screws
• 1/4"-20/Anti-Twist Accessory Threads
• 3/8"-16 Mounting Threads
• Safety Pins on Both Ends
• Mounting Slots for Wide Compatibility
• Aluminum Alloy & Stainless Steel Construction
Product Description

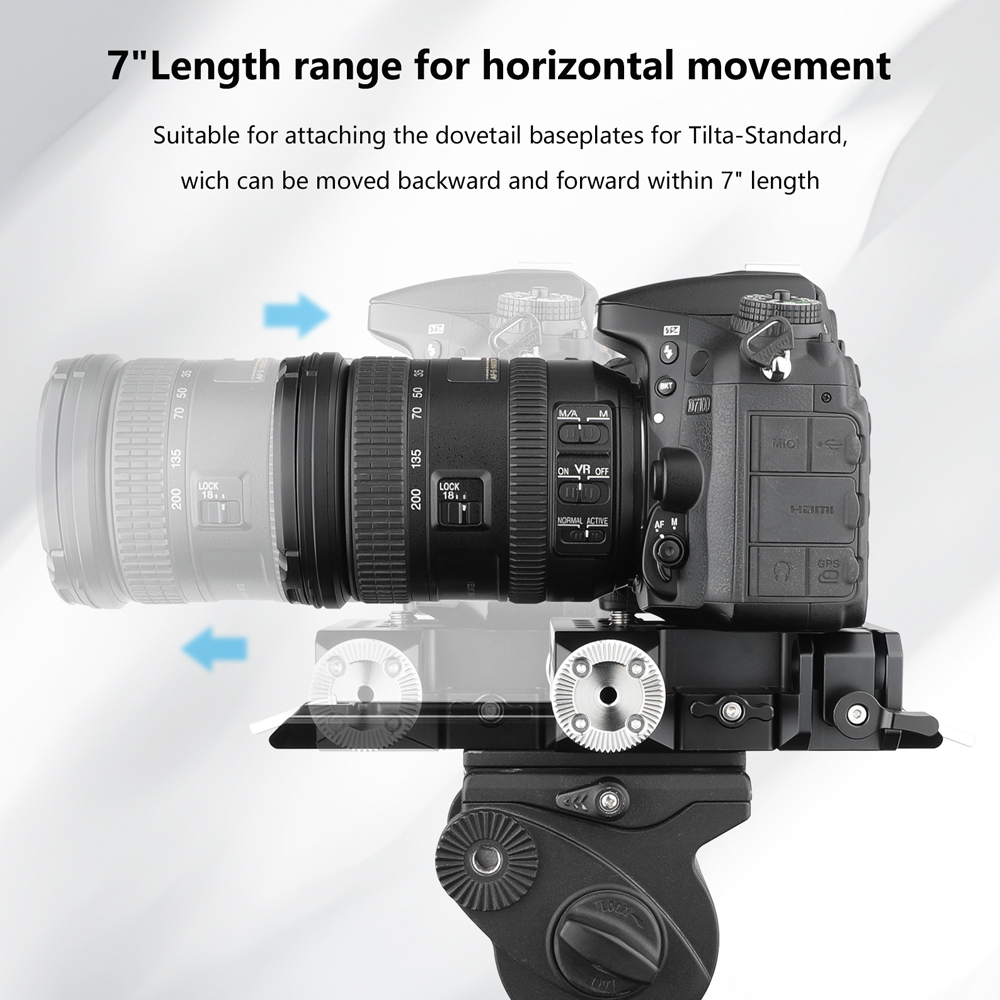

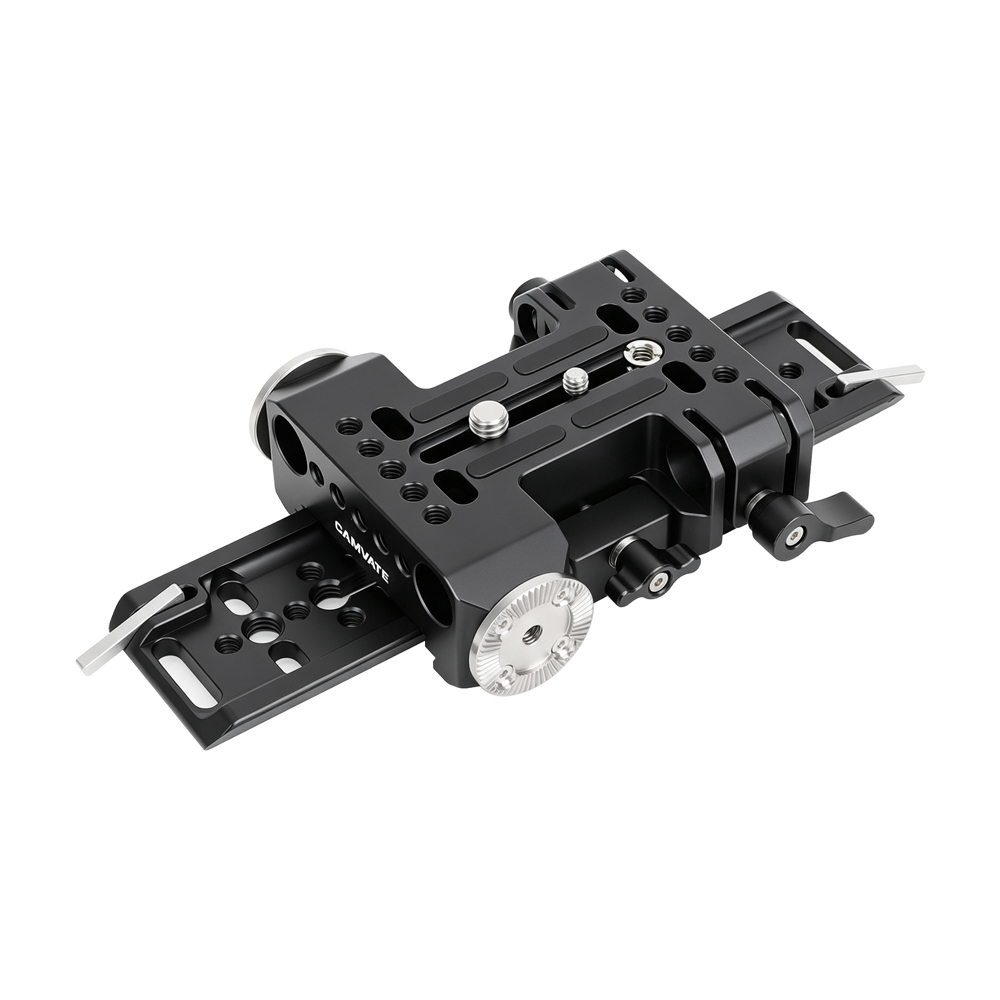

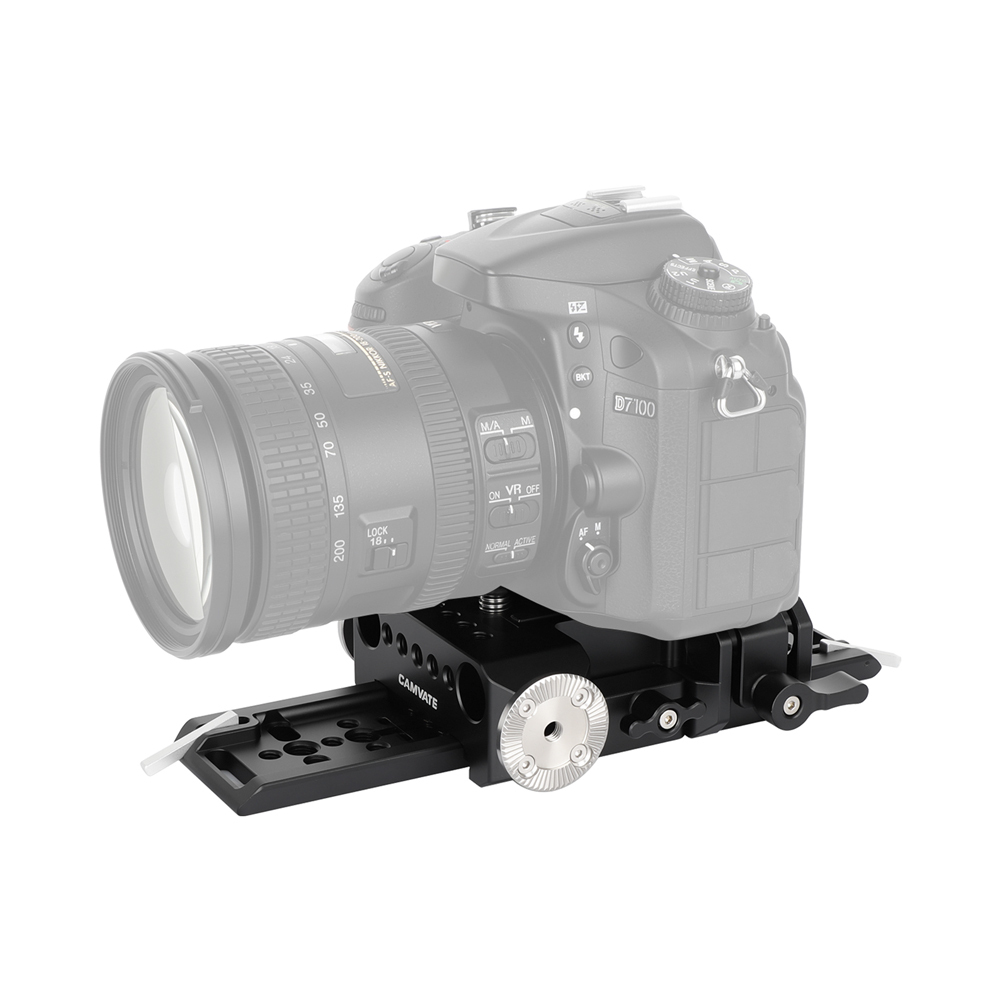

Integrate this 8" Dovetail Plate and 15mm LWS Baseplate into your rig configuration and provide additional adjustment length to properly balance your camera. The Manfrotto-Style (577/501/504) dovetail plate offers a release pin on each end for security, and features multiple 1/4"-20 and 3/8"-16 mounting threads to integrate accessories to the front or rear of your camera, or for mounting it on a tripod quick release plate or other support. The Manfrotto-/Tilta-Standard 15mm LWS Baseplate slides onto the bottom dovetail and offers two camera screws, one 14"-20 and one 3/8"-16, facilitating swift attachment and detachment of cameras and accessories for rapid shot resets. Dual 15mm rod clamps allow the baseplate to be integrated into rod-mounted configurations and support the integration of rod-based accessories like lens motors, matte boxes, and follow focus units, and dual ARRI rosettes can accommodate rosette-based accessories like compatible handgrips.
Please note this dovetail set is not ARRI-compatible.
Net Weight: 496 g

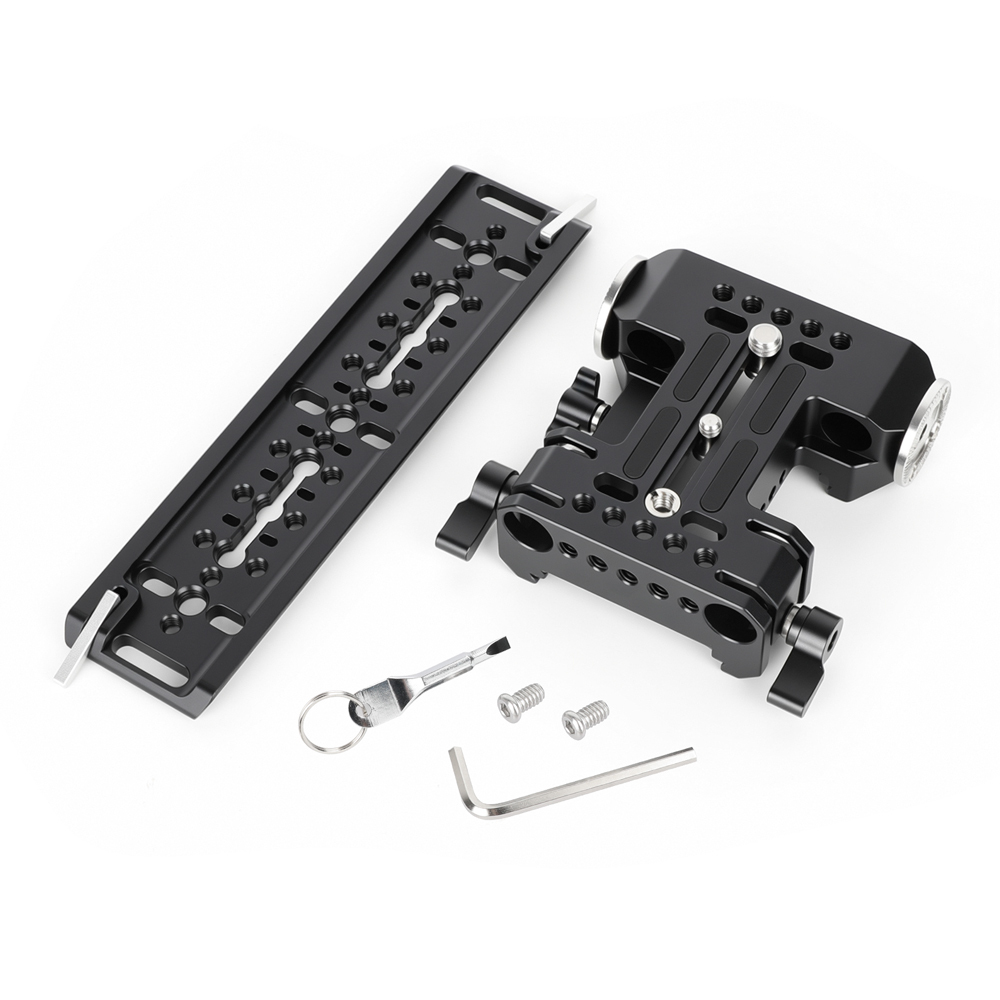

Items Included
8"/20cm Manfrotto-Style Bottom Dovetail
Manfrotto-/Tilta-Standard 15mm LWS Baseplate
2 x 1/4"-20 Mounting Screw
Allen Wrench
Flat-Head Screwdriver
